Pipe Alignment and Centering Tools for Welding
Posted on
When it comes to pipe alignment and centering for welding, precision and efficiency are crucial. Misaligned pipes can cause time-consuming rework, poor weld quality, and unnecessary costs. This is where AMA® Centering Collars make the difference: ultra-fast, accurate, and easy-to-use tools designed to minimize errors in pipe installation and welding.
Why Pipe Alignment Matters
Correct pipe alignment ensures:
- Strong, high-quality welds
- Reduced installation errors
- Faster workflow with fewer interruptions
- Improved safety and ergonomics for welders
Without the right tools, pipe centering can be slow and imprecise, but with AMA Collars, the process becomes both reliable and efficient.
What Are AMA® Centering Collars?
AMA Centering Collars are stainless steel, acid-resistant collars designed to align pipes quickly and precisely. They are available in a wide range of sizes, covering:
- DN dimensions: DN65 – DN1500
- NS dimensions: NS100 – NS1500
- Compatibility: Collars DN/NS 350 and larger fit both DN and NS dimensions

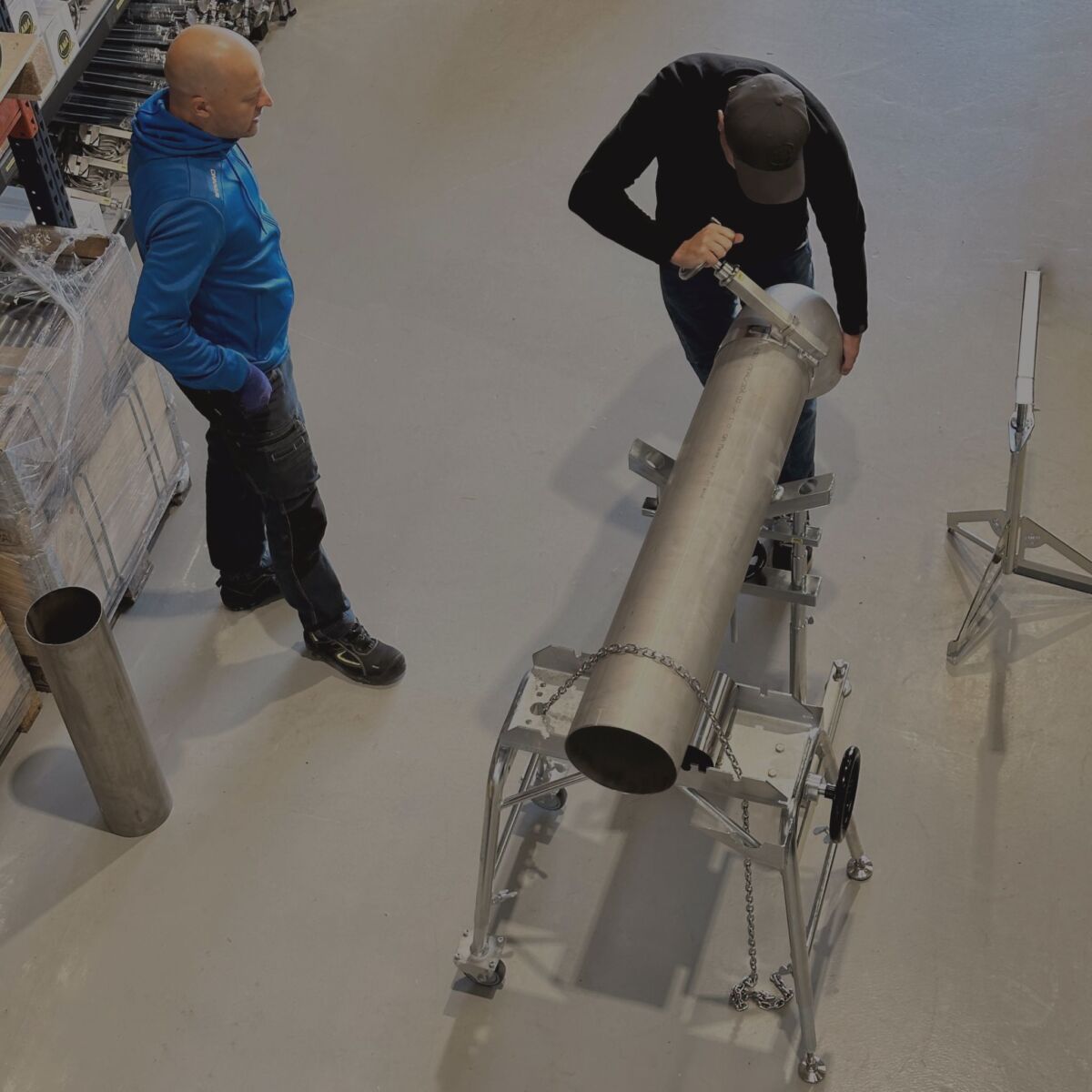

By using a collar tightener, the collar is secured around the pipe, ensuring optimal centering before welding begins. This reduces misalignment and guarantees consistent welding results.
AMA® Collar Sets
To suit different project needs, AMA offers ready-to-use sets:
- Basic Centering Collar Set (3040)
- DN150–DN500 collar sizes
- Includes a Basic Tightener (3010)
- Weight: 10.2 kg
- Centering Collar Miniset (3060)
- DN65–DN125 collar sizes
- Includes a Mini Tightener (3030) and a Collar Holder for Toolbox (3050)
- Weight: 2.4 kg
These sets give welders everything needed for efficient alignment, whether working on small or large pipe dimensions.
AMA® Collar Tighteners for Every Size
For maximum accuracy, AMA provides three stainless steel collar tighteners fitted with thrust bearings:
Mini Tightener (3030): For DN65–DN125, lightweight at 0.9 kg
Basic Tightener (3010): For DN150–DN/NS500, weight 2.3 kg
Large Tightener (3020): For DN/NS600 and larger, designed for thick-walled pipes with added torsional force (requires two tighteners for collars DN/NS600+)
Key Benefits of AMA Collars
- Ultra-fast setup, saving valuable working time
- Stainless steel durability for long-term use
- Precision that minimizes welding errors
- Flexible sizing from DN65 up to DN1500
- Complete sets available for different project scales
Conclusion
If you want to achieve efficient, accurate pipe alignment and centering for welding, AMA® Centering Collars are the professional solution. With a wide range of sizes, durable stainless steel construction, and specialized tightening tools, AMA Collars help welders work faster, safer, and with consistent results.
👉 Explore the full range of AMA Pipe Tools to find the right centering collars and tighteners for your welding projects.
