AMA ROLLER® Pipe rotator

AMA Roller® Pipe rotator

(Product code 7010)

The patented AMA Roller® Pipe rotator is supplied mounted on the AMA A pipe stand and is suitable for both preparatory workshops and job sites. The device rotates pipes at the desired speed and the welder doesn’t have to constantly change positions. The pipe rotator streamlines work in many phases:

• Facilitates cutting with an angle grinder
• Easier, faster welding and assembling tack welding (no interruptions, seam resembles a robot weld)
• Cleaning of back welds and brushing of seams
• Suitable for all manual welding methods: MIG, MAG, covered electrode arc welding, and TIG
• Enables welding of difficult materials in one ergonomic position
• Quicker brushing of stainless steel seams
• Quick-release fastener for easy fastening / removal from AMA’s A pipe stand

Significantly improves the quality of welded seams

Difficult materials can be welded in one ergonomic position

Minimizes differences in skill levels between individuals

Labor productivity grows

Makes the welder’s work more enjoyable

Enables MIG/MAG welding of pipes

• Suitable for pipe diameters from 30 to 508 mm
• Weight 23 kg (+ pipe stand A 33 kg)
• Maximum rotating load 30 Nm
• Nominal voltage 220/230 V (also available in 110 V)
• Current 0.9 A, frequency 50/60 Hz, power 100 W
• Maximum rotation speed 1.25 m/min
• Patented
• CE-marked

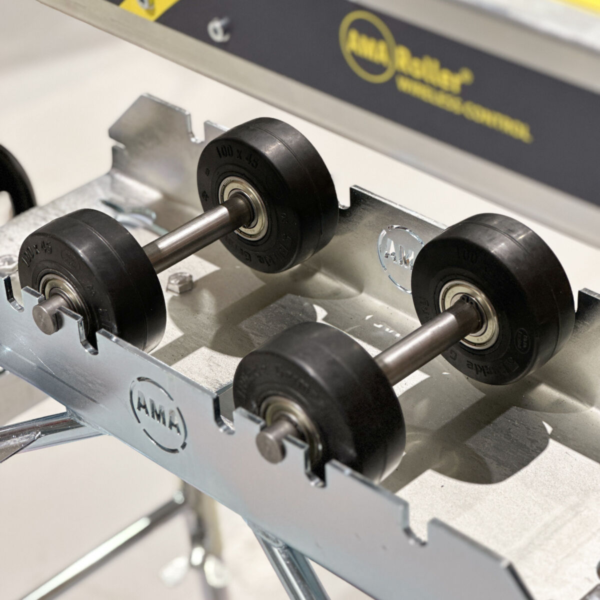

AMA® Rubber wheel set (product code 4011)

• Set includes two pairs of rubber wheels
• Load capacity 1500 kg / set
• Makes work smoother when:
  • The longitudinal seam of the pipe is high
  • The pipe surface is uneven
• Material: rubber
• Heat resistance 100°C
• Weight 3,2 kg / set
• Wheel diameter 100 mm
